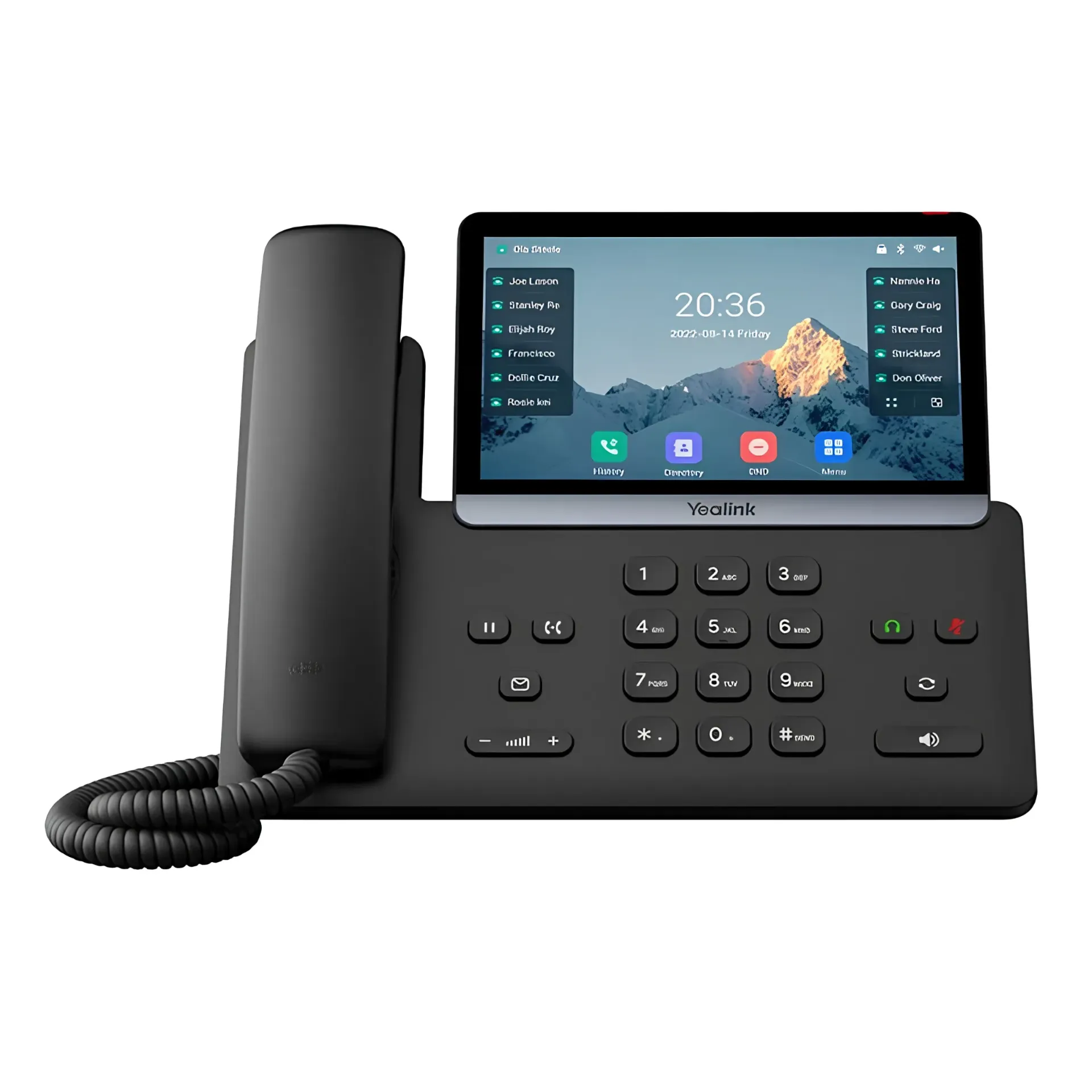

Yealink SIP-T77U Datasheet

A Revolutionary SIP Phone with a 7-inch Touch Screen


Yealink presents a dynamic business communication solution to executives and professionals with the new T77U IP phone. Yealink's new T7X series has a slimmer, sleeker look, improved interoperability, and better collaboration. The phone employs an appealing, large touch screen that makes the switch between pages and applications swift, easy, and convenient. Yealink's self-developed AI noise cancellation ensures better audio quality during calls. With United Yealink Optima HD Voice technology, the T77U offers you superb audio quality and crystal-clear voice communications. Moreover, the T77U puts dual USB ports in a phone that makes Bluetooth, Wi-Fi, USB headset, and USB recording come true, and you can use any two of them freely according to your needs.

Key Features and Benefits

  • 7" 800 x 480-pixel color touch screen with backlight
  • TEE hardware encryption solution
  • Dual USB ports
  • Dual firmware images
  • T7X Auto-P template unified
  • Unified firmware for T7X series (T73U, T73W, T74U, T74W, T77U), T85W, and T87W
  • Up to 16 SIP accounts
  • Dual-port Gigabit Ethernet
  • PoE support
  • Headset, EHS support
  • Supports Wi-Fi via WF50(V1)
  • USB recording
  • Supports color-screen expansion modules
  • Stand with 2 adjustable angles
  • Wall mountable
  • Handset with hall switch
€ 294.00 € 294.00 (Tax excluded)
€ 294.00 (Tax excluded)

HD Audio

Yealink Optima HD Voice technology combines cutting-edge hardware and software with wideband technology for maximum acoustic performance. It is an open, highly versatile audio codec designed to deliver higher HD audio quality than other wideband codecs over a high network bandwidth. Yealink's self-developed AI noise cancellation technology ensures a clear audio experience during calls.

Secure Transport and Interoperability​

Yealink T7 series uses SIP over Transport Layer Security (TLS/SSL), which is the latest network security technology. It's also compatible with leading soft switch suppliers, such as 3CX and Broadsoft Broadworks. It is equipped with dual firmware images that provide enterprise-level protection to avoid bricking your system in case of upgrade failure. What's more, the T7 series supports the feature of Security Center, allowing users to decide whether to connect the phone to the device management platform/service and what private data they permit to report.

Customizability and Scalability

The SIP-T77U has a seven-inch, 800 x 480-pixel, backlit-color touch screen, which enables a rich visual presentation and easy navigation. Accompanied by two USB ports, the T77U is your right-hand man in the office, making Bluetooth, Wi-Fi, USB headset, and USB recording possible, and you can use any two of them freely according to your needs to enrich phone features. Meanwhile, the phone not only has 84 one-touch DSS keys that can be easily programmed to various features but also can connect up to three expansion modules, for up to 234 additional buttons with a screen-based LCD display and LED system.

Easy Installation and Deployment

Yealink T7 series supports efficient provisioning and effortless mass deployment with Yealink's Redirection and Provisioning Service (RPS) and Boot mechanism to help you realize Zero Touch Provisioning without any complex manual settings, making the T7 series simple to deploy, easy to maintain, and upgrade. Furthermore, a unified firmware and auto-p template that applies to all T7 phone models saves even more time and costs for businesses and simplifies management and maintenance.

TEE Hardware Encryption Solution

T77U uses the TEE hardware encryption solution, which can provide you with a more secure data storage experience.

Audio Features


• HD voice: HD handset, HD speaker

• Hearing aid compatible (HAC) handset

• Acoustic Shield

• Smart Noise Filtering

• Audio codec: AMR-WB (optional), G.722

• Narrowband codec: AMR-NB (optional), PCMU (G.711μ), PCMA (G.711A), G.723.1, G.729, G.729A, G.729B, G.729AB, G.726, iLBC

• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO

• Full-duplex hands-free speakerphone with AEC

• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features


• 16 VoIP accounts

• Call hold, mute, DND

• One-touch speed dial, hotline

• Call forward, call waiting, call transfer

• Group listening

• Emergency call

• Redial, call return, auto answer

• 10-way conferencing

• Direct IP call without SIP proxy

• Ring tone selection/import/delete

• Set date/time manually or automatically

• Dial plan, XML Browser, action URL/URI

• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

• Dual USB ports (2.0 compliant)

> Yealink Bluetooth headset through BT51

> Support Yealink Bluetooth headset BH71/BH71 Workstation/BH71 Workstation Pro/BH72/BH76/UH38 through BT51

> DECT wireless headset (Yealink WH62 Portable/WH63 Portable)

> Wi-Fi through WF50(V1)

> USB call recording through USB flash drive

> USB headset

> Expansion Module EXP55

> Wireless Headset Adapter EHS40

> USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone/wireless headset UH38, USB connectivity to Yealink wired headset UH34/UH36/UH37:

- Basic functions: Answer/end, call mute

- Enhanced functions: audio optimization, redial, call hold, volume synchronization, multiple call control

• Accessibility features

Directory


• Local phonebook up to 1000 entries

• Blocklist

• XML/LDAP remote phonebook

• Smart dialing

• Phonebook search/import/export

• Call history: dialed/received/missed/forwarded

IP-PBX Features


• Busy Lamp Field (BLF), Bridged Line Appearance (BLA)

• Anonymous call, anonymous call rejection

• Hot-desking, voice mail

• Flexible seating, Executive and Assistant

• Call park, call pickup

• Centralized call recording, call recording

• Visual voicemail

Display and Indicator


• 7" 800 x 480 capacitive adjustable touch screen

• LED for call and message waiting indication

• Wallpaper

• Intuitive user interface with icons and soft keys

• Multilingual user interface

• Caller ID with name, number and photo

• Screensaver

• Intelligent power saving

• Supports both dark and light themes

Feature keys


• 84 one-touch DSS keys

• 7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone

• Volume control keys

• Illuminated mute/headset/hands-free speakerphone key

Interface


• Dual-port Gigabit Ethernet

• Supports PoE power supply (IEEE 802.3af), class 3

• 2 x USB ports (Type-USB A, Type-USB C)

• 1 x RJ9 (4P4C) handset port

• 1 x RJ9 (4P4C) headset port

Management


• Configuration: browser/phone/auto-provision

• Auto-provision via FTP/TFTP/HTTP/HTTPS for mass deployment

• Auto-provision with PnP

• Broadsoft device management

• Zero-Sp-Touch, TR-069

• Phone lock for personal privacy protection

• Reset to factory, reboot

• Package tracing export, system log

Network and Security


• SIP v1 (RFC2543), v2 (RFC3261)

• Call server redundancy supported

• NAT traversal: STUN mode

• Proxy mode and peer-to-peer SIP link mode

• IP assignment: static/DHCP

• HTTP/HTTPS web server

• Time and date synchronization using SNTP

• UDP/TCP/DNS-SRV(RFC 3263)

• ARP, ICMP

• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP

• SRTP for voice

• Transport Layer Security (TLS 1.3)

• HTTPS certificate manager

• AES encryption for configuration file (AES256)

• Digest authentication using MD5/MD5-sess

• OpenVPN, IEEE802.1X, L2TP VPN

• IPv6, LLDP/CDP/DHCP VLAN, ICE

• WPA2/WPA3

• Secure boot

• GARP (Generic Attribute Registration Protocol)

• TEE hardware encryption solution

Other Physical Features


• Color: Classic Grey

• Wall mountable (optional)

• External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output

• USB output current: 5V/500mA

• Power consumption (PSU): 2.48 W-2.63 W

• Power consumption (PoE): 2.418 W-3.233 W

• Dimension (W*D*H*T): 262.1 mm*167.5 mm*219.2 mm*56.9 mm

• Operating humidity: 10 - 95%

• Operating temperature: -10 to 45°C (+14 to 113°F)

• Storage temperature: -30 to +70°C (-22 to +158°F)

Package Features


• Package content:

- Yealink SIP-T77U IP phone

- Handset with handset cord

- Ethernet Cable (2m CAT5E UTP Cable)

- Stand

- Quick Start Guide

- Power Adapter (Optional)

- Wall Mount Bracket (Optional)

• Qty/CTN: 5 PCS

• N.W/CTN: 6.99 kg

• G.W/CTN: 7.702 kg

• Giftbox size: 285 mm*253 mm*104 mm

• Carton Meas: 540 mm*260 mm*300 mm

Frequently Asked Questions


The Yealink SIP-T77U is the top model in Yealink’s new T7 series of business IP phones. It has a large 7-inch colour touchscreen, 16 SIP accounts and 84 programmable keys. It suits executives, managers, receptionists and anyone who handles a lot of calls every day. If your office uses the older Yealink T48U, the T77U is its newer replacement, with a slimmer design, better audio and stronger security. You can see it, along with the rest of the Yealink range, in the Pulse Telecom shop.

Yes. The T77U is a standard SIP desk phone, so it works with Pulse Telecom’s hosted PBX, cloud phone systems and VoIP services for Irish businesses. It also works with leading platforms such as 3CX and BroadWorks. Calls are protected with TLS 1.3 and SRTP encryption, and TEE hardware encryption keeps your data secure. When you buy through Pulse, our team can set up and provision the phone for you, so it is ready to use when it arrives on your desk.

No. Wi-Fi and Bluetooth are not built in, but you can add them easily through the phone’s two USB ports (USB-A and USB-C). Use the Yealink WF50 dongle for Wi-Fi and the Yealink BT51 dongle for Bluetooth headsets such as the BH71, BH72 and BH76. The two USB ports can also connect a USB headset or a USB flash drive for call recording. You can use any two of these at the same time. If you would like a desk phone with built-in Wi-Fi, look at the Yealink T74W or T73W in our T7 series range.

Yes. The T77U supports Power over Ethernet (PoE, IEEE 802.3af), so a PoE switch can power it through the network cable, with no separate plug needed. It also has dual-port Gigabit Ethernet, so you can connect your computer through the phone and save a network point. The box contains the phone, a handset and cord, a 2-metre Ethernet cable, a stand with two adjustable angles and a quick start guide. The power adapter and wall-mount bracket are optional. If you don’t have a PoE switch, ask Pulse to include a power adapter with your order.

Yes. It has 84 one-touch DSS keys that you can set up as Busy Lamp Field (BLF) keys, speed dials, call park or call pickup. BLF keys light up so you can see at a glance which colleagues are on a call. For larger teams, you can connect up to three Yealink EXP55 colour expansion modules to add up to 234 more keys. Hot-desking, visual voicemail, call transfer and 10-way conference calls are also included, which makes the T77U a strong choice for reception and switchboard roles.

Call quality is one of its biggest strengths. Yealink Optima HD Voice gives clear, natural-sounding calls on both the handset and the speakerphone. Yealink’s AI noise cancellation and Acoustic Shield cut out background noise from busy or open plan offices, so the caller hears you, not the office. The handset is also hearing aid compatible. You can connect wired, USB, Bluetooth or DECT wireless headsets, such as the Yealink WH62, which is available from Pulse.

You can order the Yealink T77U directly from the Pulse Telecom online shop, or contact our Dublin team for a quote on multiple phones or a complete business phone system. Pulse supplies, configures and supports Yealink IP phones for businesses across Ireland. We can also advise on matching accessories such as headsets, expansion modules and Wi-Fi or Bluetooth dongles. Call +353 1 862 3300 or email info@pulse.ie to get started.
