Audio Features
• HD voice: HD handset, HD speaker
• Hearing aid compatible (HAC) handset
• Acoustic Shield
• Smart Noise Filtering
• Audio codec: G.722, PCMU(G.711µ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC
Video Features
• 16 VoIP accounts
• Call hold, call forward, call waiting, call transfer
• One-touch speed dial, hotline, mute, DND
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• 10-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Built-in dual band Wi-Fi:
- Network standard: IEEE802.11a/b/g/n
- Transmission rate: Up to 433Mbps (dynamic)
- Frequency range: 2.4GHz/5.0GHz
• Built-in Bluetooth for:
- Bluetooth headset,
- Mobile contacts synchronization
- Bluetooth call
- Simultaneous connection of one headset and one mobile phone
• USB port (2.0 compliant) for:
- Wired/wireless USB headset
- USB call recording through USB flash drive
- Color-screen expansion modules EXP50 (up to 3)
- Wireless Headset Adapter EHS40
• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
- Basic functions: Answer / end, call mute
- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
• Content Sharing (via Yealink VCD)
• Enhanced DSS key
Display and Indicator
• 4.3" 480 x 272-pixel color display with backlight
• 16 bit depth color
• LED for call and message waiting indication
• Dual-color (red or green) illuminated LEDs for line status information
• Wallpaper
• Intuitive user interface with icons and soft keys
• Multilingual user interface
• Caller ID with name and number
• Screensaver
• Power saving
Phone Features
• 16 VoIP accounts
• Call hold, call forward, call waiting, call transfer
• One-touch speed dial, hotline, mute, DND
• Group listening, SMS, emergency call
• Redial, call return, auto answer
• 10-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan, XML Browser, Action URL/URI
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
• Built-in dual band Wi-Fi:
- Network standard: IEEE802.11a/b/g/n
- Transmission rate: Up to 433Mbps (dynamic)
- Frequency range: 2.4GHz/5.0GHz
• Built-in Bluetooth for:
- Bluetooth headset,
- Mobile contacts synchronization
- Bluetooth call
- Simultaneous connection of one headset and one mobile phone
• USB port (2.0 compliant) for:
- Wired/wireless USB headset
- USB call recording through USB flash drive
- Color-screen expansion modules EXP50 (up to 3)
- Wireless Headset Adapter EHS40
• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
- Basic functions: Answer / end, call mute
- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
• Content Sharing (via Yealink VCD)
• Enhanced DSS key
Corded-Cordless Phone (via DECT Dongle DD10K)
• Up to 4 DECT cordless handsets
• Up to 4 concurrent calls
• Support Yealink W52H/W53H/W56H/DD Phone/CP930W
• Slave Handset for Master Deskset
IP-PBX Features
• Busy Lamp Field (BLF)
• Bridged Line Appearance (BLA)
• Anonymous call, anonymous call rejection
• Hot-desking, voice mail
• Flexible seating
• Executive and Assistant
• Call park, call pickup
• Centralized call recording, call recording
Directory
• Local phonebook up to 1000 entries
• Black list
• XML/LDAP remote phonebook
• Smart dialing
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded
Feature keys
• 10 line keys with LED
• 10 line keys can be programmed up to 27 various features(3-page view)
• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone
• 4 context-sensitive “soft” keys
• 6 navigation keys
• Volume control keys
• Illuminated mute/headset/hands-free speakerphone key
Interface
• Dual-port Gigabit Ethernet
• Power over Ethernet (IEEE 802.3af), class 3
• 1 x USB port (2.0 compliant)
• 1 x RJ9 (4P4C) handset port
• 1 x RJ9 (4P4C) headset port
Management
• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment
• Auto-provision with PnP
• Broadsoft device management
• Zero-sp-touch, TR-069
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log
Network and Security
• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT traversal: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DS
• SRTP for voice
• Transport Layer Security (TLS 1.3)
• HTTPS certificate manager
• AES encryption for configuration file (AES256)
• Digest authentication using MD5/MD5-sess
• OpenVPN, IEEE802.1X, L2TP VPN
• IPv6, LLDP/CDP/DHCP VLAN, ICE
> WPA2/WPA3
> Secure boot
> GARP (Generic Attribute Registration Protoco
Other Physical Features
• Color: Classic Grey
• Wall mountable (optional)
• External Yealink AC adapter (optional):AC 100~240V input and DC 5V/2A output
• USB output currency: 5V 500mA
• Power consumption (PSU): 1.7W-4.3W
• Power consumption (PoE): 2.2W-5.5W
• Dimension (W*D*H*T): 233mm*222.6mm*186.1mm*41.7mm
• Operating humidity: 10~95%
• Operating temperature: -10~50°C (+14~122°F)
Package Features
• Package content:

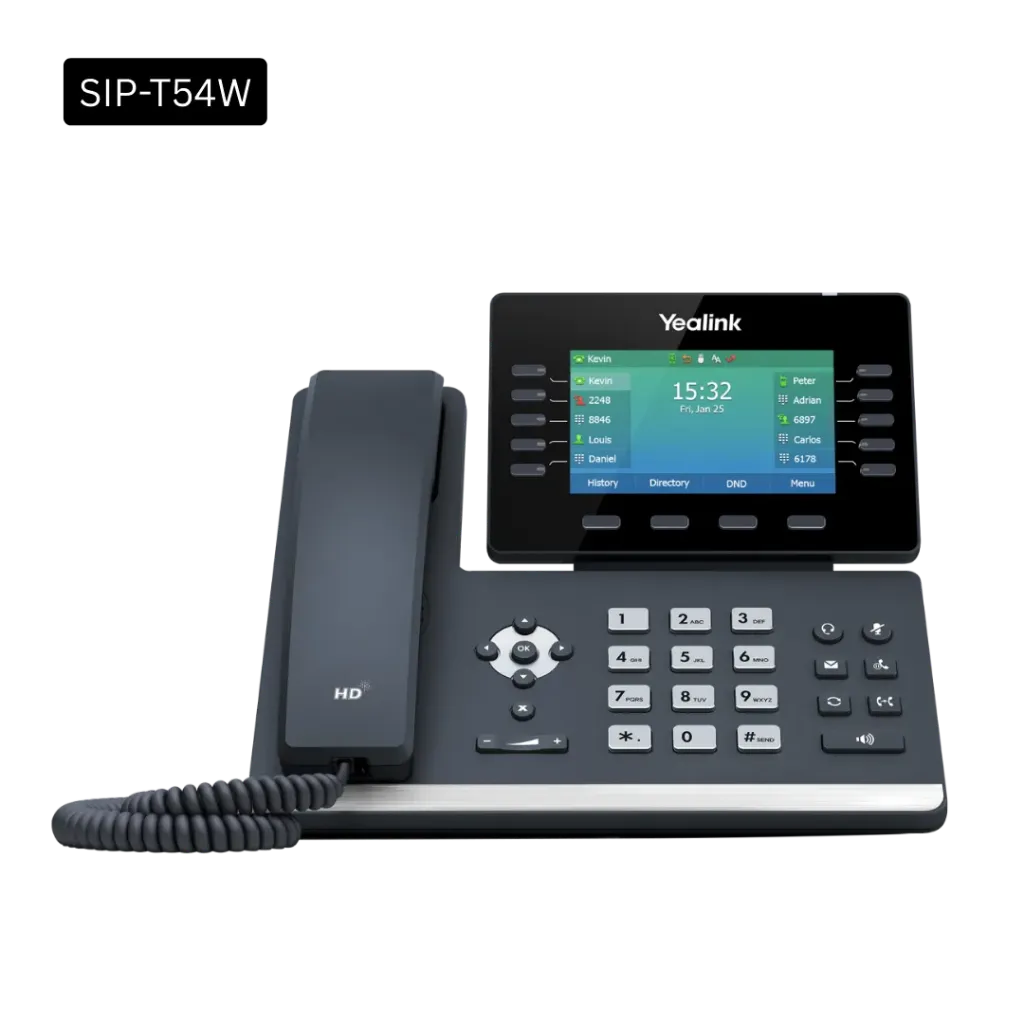

- Yealink SIP-T54W IP phone
- Handset with handset cord
- Ethernet Cable
- Stand
- Quick Start Guide
- Power Adapter (Optional)
• Qty/CTN: 5 PCS
• N.W/CTN: 6.3 kg
• G.W/CTN: 6.8 kg
• Giftbox size: 259 mm*243 mm*103 mm
• Carton Meas: 538 mm*250 mm*265 mm
