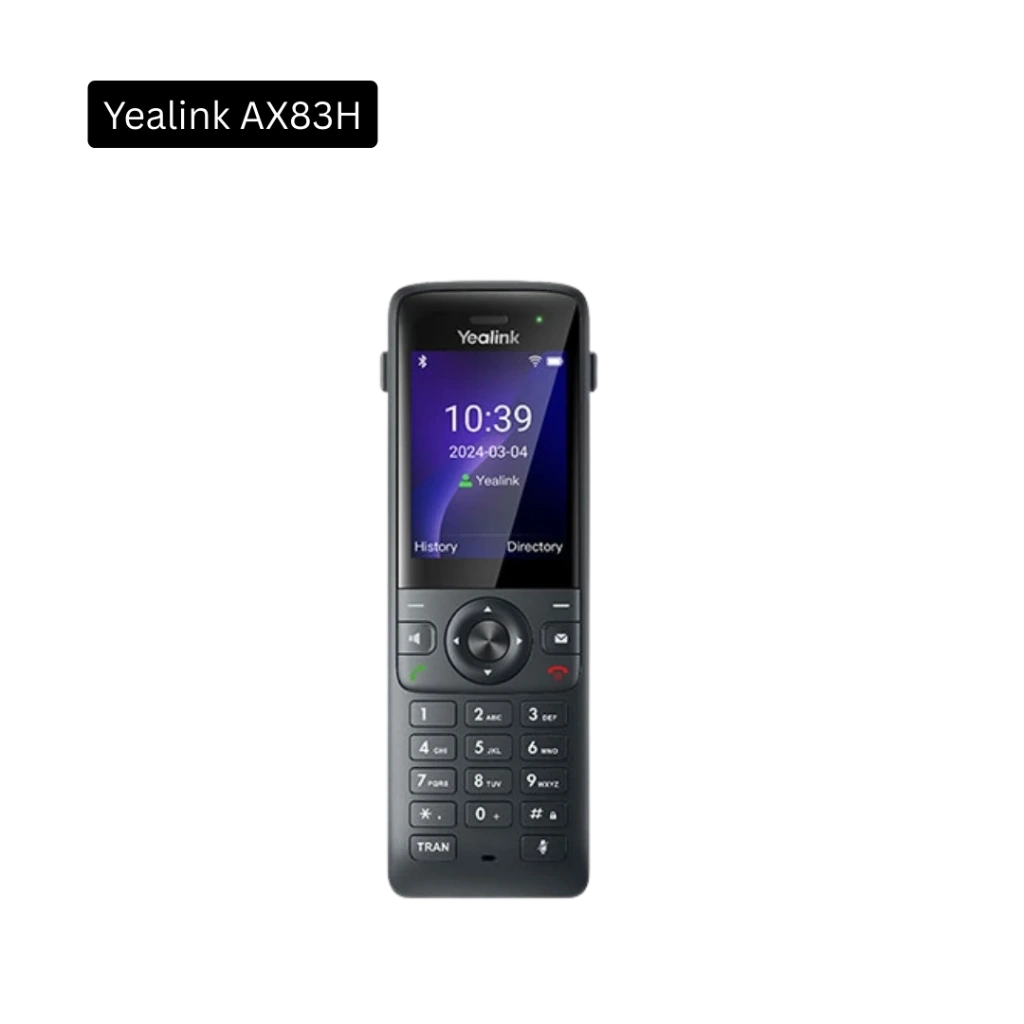

Yealink AX83H

Yealink AX83H

AX83H is an enterprise portable Wi-Fi IP color screen phone that meets wireless communication needs. The AX83H supports registering up to four SIP accounts and features a 2.4-inch color display. It integrates Yealink's Optima HD Audio and Smart Noise cancellation technology to deliver exceptional audio quality and clear voice communication. It is equipped with a built-in Bluetooth 5.0 module and a dual-band 2.4G/5G Wi-Fi 6 module, combined with advanced seamless roaming technology, allowing you to stay ahead in the ever-evolving wireless era.

Key Features and Benefits

2.4" 240x320 TFT color screen
Up to 9-hour talk time (Laboratory data)
Up to 200-hour standby time (Laboratory data)
Dual Band 2.4G/5G Wi-Fi 802.11 a/b/g/n/ac/ax
Support IEEE802.11k/v/r roaming
€ 216.00 € 216.00 (Tax excluded)
€ 216.00 (Tax excluded)

Add to cart
Audio FeaturesDisplay and IndicatorPeripheralsPhone FeaturesIP-PBX FeaturesDirectoryFeature KeysInterfaceNetworkSecurityPowerEnvironmental FactorsManagementPackage Features

Audio Features

• Optimal HD audio: HD handset, HD speaker

• Hearing aid compatible (HAC) compliant

• Audio codec: G.722, PCMU (G.711μ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC

DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO

• Full-duplex hands-free speakerphone with AEC

• Smart Noise Cancellation Technology

• VAD, CNG, AEC, PLC, AJB, AGC

Display and Indicator

• 2.4" 240x320 TFT color screen

• Keypad backlight

• Vibration

• Wallpaper and screensaver

• LED for call and message waiting indication

• Multilingual user interface

• Caller ID with name, number, and avatar

Peripherals

• Support Bluetooth headset

- Basic functions: answer/end/mute call

- Enhanced functions: redial/call hold/volume adjustment two-way synchronization


Phone Features

• 4 VoIP accounts

• Speed dial, redial

• Call hold/call transfer/call waiting/call forward

• Emergency call

• Mute, DND

• Auto answer

• Hotline

• Recall

• Local 5-way conferencing

• Direct IP call without SIP proxy

• Ring tone selection/import/delete

• Set date and time manually or automatically

• Dial Plan, XML Browser, Action URL/URI

• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

• Customizable softkey


IP-PBX Features

• Anonymous call, anonymous call rejection

• Intercom

• Multicast paging

• Call completion

• Message Waiting Indicator (MWI)

• Call park, call pickup

• Call recording

• Voice mail


Directory

• Local phonebook up to 1000 entries

• Blocklist

• XML/LDAP remote phonebook

• Google contacts

• Smart dialing

• Phonebook search/import/export

• Call history: All calls/dialed/received/missed/forwarded


Feature Keys

• 2 soft keys

• 6 function keys: dial, hang up, handsfree, voice message, mute, call transfer

• Navigation key and OK key


Interface

• 1 x 3.5 mm headset jack

• 1 x Type-C port


Network

• Built-in dual-band Wi-Fi:

- Network standard: 2.4G&5G, IEEE802.11a/b/g/n/ac/ax

- Frequency range: 2.4 GHz/ 5.0 GHz

- Roaming: IEEE802.11 k/r/v

• Built-in Bluetooth 5.0:

- Connecting to Bluetooth Headset

• IPv4/IPv6

• SIP v1 (RFC2543), v2 (RFC3261)

• Call server redundancy supported

• NAT traversal: STUN mode

• SIP link mode: Proxy mode and peer-to-peer

• IP Assignment: static/DHCP

• HTTP/HTTPS web server

• Time and date synchronization using SNTP

• UDP/TCP/DNS-SRV (RFC 3263)

• QoS: Layer 3 ToS DSCP, 802.11e/WMM


Security

•  SRTP for voice

• TLS1.3 support

• HTTPS certificate manager

• AES encryption for configuration file (AES256)

• Digest authentication using MD5/MD5-sess

• OpenVPN, IEEE802.1X

• WPA, WPA2, WPA3

• Secure boot

• GARP (Generic Attribute Registration Protocol)

Power

•   Power adapter: AC 100~240V input and DC 5V/1.2A output

Environmental Factors

• Operating humidity: 10%-95%

• Operating temperature: 0 to 40°C (+32 to 104°F)

• Storage temperature: -30 to 70℃

Management

• Configuration: browser/phone/auto-provision

• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment

• Auto-provision with PnP

• TR-069

• Phone lock for personal privacy protection

• Reset to factory, reboot

• Package tracing export, system log

• Supports Yealink Device Management Platform (YMDP/YMCS)


Package Features

• Handset size: 151.0 x 49.5 x 21 mm

• Handset weight: 126 g

• Giftbox size: 181 × 104 × 90 mm

• Carton meas: 464 × 434 × 198 mm

• Qty/CTN: 20 PCS

• G.W/CTN: 8.03 kg

• N.W/CTN: 7.36 kg

• Package contents

- Yealink AX83H Phones

- Charger Cradle

- Rechargeable Battery

- Belt Clip

- Quick Start Guide

- Power Adapter
