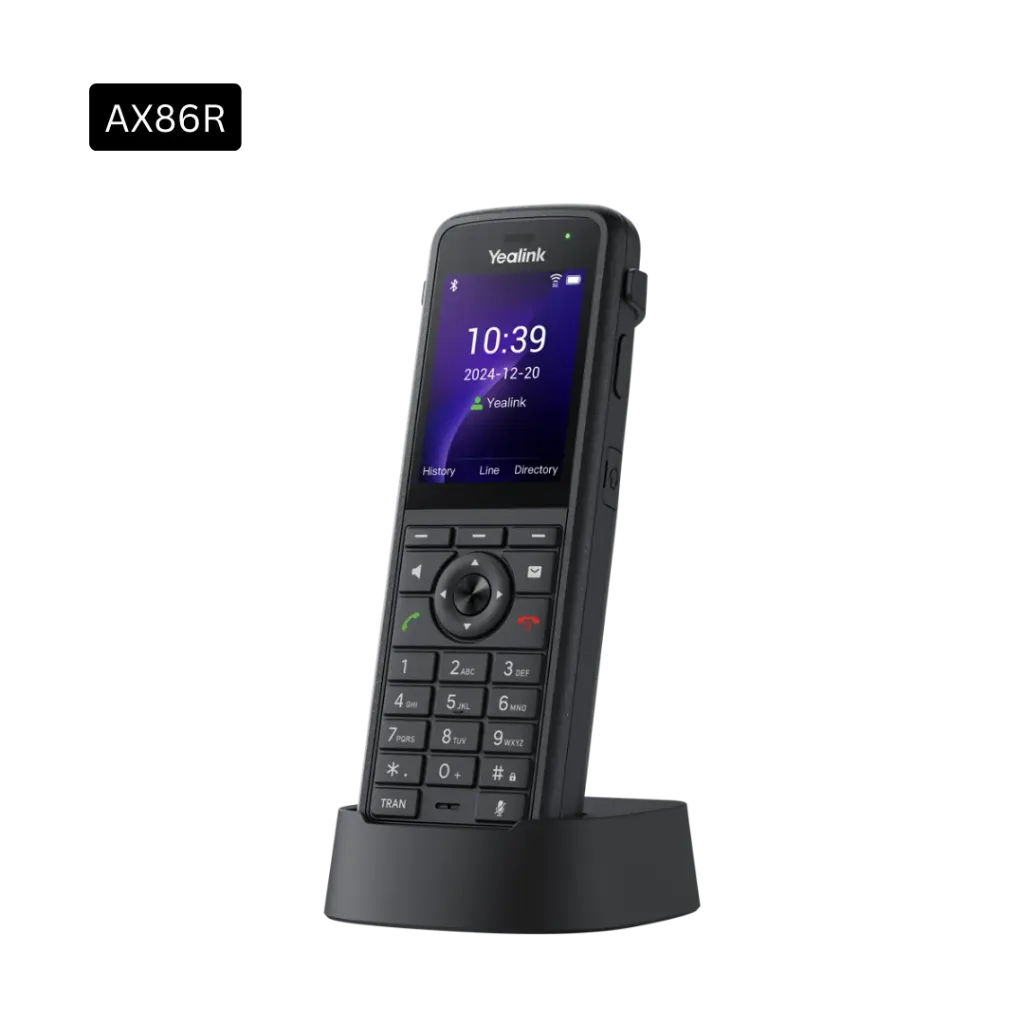

Yealink AX86R

The Yealink AX86R is a rugged Wi-Fi IP phone designed for business communication in demanding workplaces. With IP67 waterproof and dustproof protection plus 1.8-metre drop resistance, this durable Wi-Fi handset is suitable for manufacturing, warehouses, healthcare, transport and work environments. Dual-band 2.4G/5G Wi-Fi 6 with 802.11k/v/r seamless roaming helps maintain dependable connectivity as users move between coverage areas.

The AX86R supports up to 4 SIP accounts, 5-way conferencing and Bluetooth 5.0 headsets, making it a flexible VoIP phone for teams. Yealink Optima HD Audio, Smart Noise Cancellation and Acoustic Shield deliver clearer conversations, while the 3100mAh battery provides up to 13 hours of talk time. Its automatic alarms and push-to-talk add practical workplace safety and collaboration features.

Key Features and Benefits:

IP67-rated waterproof and dustproof, drop-proof up to 1.8 meters
2.4" 240x320 TFT color screen
Up to 13-hour talk time (Laboratory data)
Up to 300-hour standby time (Laboratory data)
Red emergency button and automatic alarm
Antibacterial design, chemical cleaning resistant
Dual Band 2.4G/5G Wi-Fi 802.11 a/b/g/n/ac/ax
Support IEEE802.11k/v/r roaming

€ 252.00 (Tax excluded)

Add to cart

Add to wishlist

Audio Features

• Optimal HD audio: HD handset, HD speaker

• Hearing aid compatible (HAC) compliant

• Acoustic Shield

• Audio codec: G.722, PCMU (G.711μ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC

DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO

• Full-duplex hands-free speakerphone with AEC

• Dual Noise-Canceling Microphones

• Smart Noise Cancellation Technology

• VAD, CNG, AEC, PLC, AJB, AGC

Display and Indicator

• 2.4" 240x320 TFT color screen

• Keypad backlight

• Vibration

• Wallpaper and screensaver

• LED for call and message waiting indication

• Multilingual user interface

• Caller ID with name, number, and avatar

Phone Features

• 4 VoIP accounts

• Speed dial, redial

• Call hold/call transfer/call waiting/call forward

• Emergency call

• Mute, DND

• Auto answer

• Hotline

• Recall

• Local 5-way conferencing

• Direct IP call without SIP proxy

• Ring tone selection/import/delete

• Set date and time manually or automatically

• Dial Plan, XML Browser, Action URL/URI

• RTCP-XR (RFC3611), VQ-RTCPXR(RFC6035)

• Customizable softkey

Peripherals

• Support Bluetooth headset

- Basic functions: answer/end/mute call

- Enhanced functions: redial/call hold/volume adjustment two-way synchronization

IP-PBX Features

• Anonymous call, anonymous call rejection

• Intercom

• Multicast paging

• Call completion

• Message Waiting Indicator (MWI)

• Call park, call pickup

• Call recording

• Voice mail

Feature keys

• 3 soft keys

• 6 function keys: dial, hang up, handsfree, voice message, mute, call transfer

• Navigation key and OK key

• Volume control keys

• Alarm Key

• PTT Key

Interface

• 1 x 3.5 mm headset jack

• 1 x Type-C port

Management

• Configuration: browser/phone/auto-provision

• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment

• Auto-provision with PnP

• TR-069

• Phone lock for personal privacy protection

• Reset to factory, reboot

• Package tracing export, system log

• Supports Yealink Device Management Platform (YMDP/YMCS)

Network and Security

• Built-in dual-band Wi-Fi:

- Network standard: 2.4G&5G, IEEE802.11a/b/g/n/ac/ax

- Frequency range: 2.4 GHz/ 5.0 GHz

- Roaming: IEEE802.11 k/r/v

• Built-in Bluetooth 5.0:

- Connecting to Bluetooth Headset

• IPv4/IPv6

• SIP v1 (RFC2543), v2 (RFC3261)

• Call server redundancy supported

• NAT traversal: STUN mode

• SIP link mode: Proxy mode and peer-to-peer

• IP Assignment: static/DHCP

• HTTP/HTTPS web server

• Time and date synchronization using SNTP

• UDP/TCP/DNS-SRV (RFC 3263)

• QoS: Layer 3 ToS DSCP, 802.11e/WMM

Environmental Factors

• Operating humidity: 10%-95%

• Operating temperature: 0 to 40°C (+32 to 104°F)

• Storage temperature: -30 to 70℃

Power

• Power adapter: AC 100~240V input and DC 5V/2A output

Security

• SRTP for voice

• TLS1.3 support

• HTTPS certificate manager

• AES encryption for configuration file (AES256)

• Digest authentication using MD5/MD5-sess

• OpenVPN, IEEE802.1X

• WPA, WPA2, WPA3

• Secure boot

• GARP (Generic Attribute Registration Protocol)

Other Physical Features

• Safe drop height: 1.8 m

• Protection rating: IP67

• Chemical cleaning resistant

• Antibacterial design

• Battery: 3100mAh, Rechargeable Lithium-ion Battery, 3.7V, 11.47Wh

- Up to 13-hour talk time (Laboratory data)

- Up to 300-hour standby time (Laboratory data)

Package Features

• Handset size: 160.1 x 55.3 x 25.85 mm

• Handset weight: 218 g

• Giftbox size: 181 × 104 × 90 mm

• Carton meas: 473× 443× 198 mm

• Qty/CTN: 20 PCS

• G.W/CTN: 9.848 kg

• N.W/CTN: 9.02 kg

• Package contents

- Yealink AX86R Phones

- Charger Cradle

- Rechargeable Battery

- Belt Clip

- Quick Start Guide

- Power Adapter

Frequently Asked Questions

What is the Yealink AX86R?

The Yealink AX86R is a rugged Wi-Fi IP phone designed for mobile business communication. It works as a wireless VoIP phone over dual-band Wi-Fi and combines a colour display, HD audio, Bluetooth 5.0, SIP support and business calling features in a portable handset.

Is the Yealink AX86R suitable for demanding work environments?

Yes. The Yealink AX86R is built as a ruggedized Wi-Fi handset with an IP67 protection rating and drop resistance of up to 1.8 metres. It also has an antibacterial design and is resistant to chemical cleaning, making it suited to workplaces where durability and easy cleaning are important.

Does the Yealink AX86R support Wi-Fi 6?

Yes. The AX86R supports dual-band 2.4 GHz and 5 GHz Wi-Fi 6, with IEEE 802.11a/b/g/n/ac/ax support. It also supports 802.11k/r/v roaming, helping the handset move between supported Wi-Fi access points while staying connected.

Is the Yealink AX86R a VoIP phone?

Yes. The Yealink AX86R is a SIP-based Wi-Fi VoIP handset and supports up to four SIP accounts. It also includes features such as call transfer, call hold, call forwarding, voicemail, call park and local five-way conferencing.

How long does the Yealink AX86R battery last?

The AX86R has a rechargeable 3100mAh lithium-ion battery. Yealink lists up to 13 hours of talk time and up to 300 hours of standby time, based on laboratory data. The handset can be charged using its charging cradle or a Type-C connection.

Does the Yealink AX86R provide clear audio in noisy areas?

The AX86R is designed for clear business calls with HD audio, dual noise-cancelling microphones, Smart Noise Cancellation, Acoustic Shield, full-duplex speakerphone and AEC technology. These features help reduce unwanted background noise during calls.

Does the Yealink AX86R have push-to-talk and emergency features?

Yes. The AX86R includes a dedicated Push-to-Talk (PTT) key for quick team communication. It also has a red emergency button and supports several alarm functions, including push-button, no-movement, man-down and running alarms.

Is the Yealink AX86R easy to deploy and manage for a business?

The AX86R supports browser, phone and automatic provisioning, as well as PnP and auto-provisioning for mass deployment. It also supports Yealink’s device management platforms, including YMCS, which can be used for remote deployment, upgrades, monitoring and troubleshooting.

What comes with the Yealink AX86R?

The Yealink AX86R package includes the handset, rechargeable battery, charger cradle, belt clip, quick start guide and power adapter. The handset also has a 2.4-inch 240 × 320 colour display, making it easy to manage calls and phone functions while working on the move.
