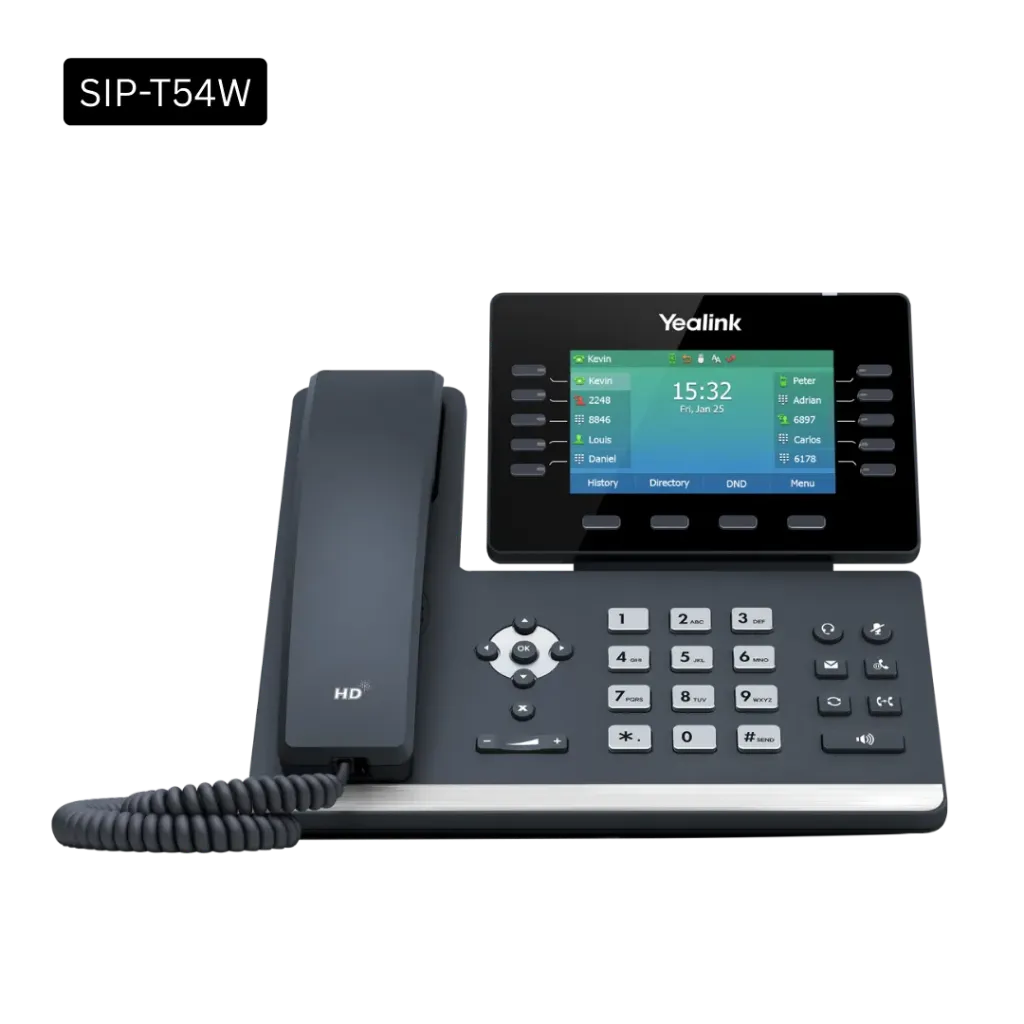

Yealink SIP-T54W

Yealink SIP-T54W


Especially designed for busy executives and professionals, the T54W Yealink SIP VoIP Phone is an easy-to-use Prime Business Phone with an adjustable 4.3-inch colour LCD screen that you can easily and flexibly find a comfortable viewing angle according to your personal and environmental needs. And 10 line keys give you 27 shortcuts for colleagues, queues and speed dials, so transfers happen in one press. HD audio with Acoustic Shield keeps office noise out of your calls.

Setup is simple. Wi-Fi and Bluetooth are built into this Yealink SIP phone, so it works without a data point and pairs with a wireless headset or your mobile. One network cable can carry both power and internet. As a standard SIP VoIP handset, it runs 16 lines, 10-way conferences and USB call recording, and it works with most hosted phone systems.

Key Features and Benefits

• 4.3" 480 x 272-pixel colour display with backlight
• Adjustable LCD screen
• Dual firmware images
• T53/T53W/T54W/T57W firmware unified
• Built-in Bluetooth 4.2
• Built-in dual band 2.4G/5G Wi-Fi (802.11a/b/g/n)
• USB 2.0 port for USB recording, wired/wireless USB headsets and EXP50
• Up to 16 VoIP accounts
• Dual-port Gigabit Ethernet
€ 252.00 € 252.00 (Tax excluded)
€ 252.00 (Tax excluded)

Add to cart
Audio FeaturesVideo FeaturesDisplay and IndicatorPhone FeaturesCorded-Cordless Phone (via DECT Dongle DD10K)IP-PBX FeaturesDirectoryFeature keysInterfaceManagementNetwork and SecurityOther Physical FeaturesPackage Features

Audio Features

• HD voice: HD handset, HD speaker

• Hearing aid compatible (HAC) handset

• Acoustic Shield

• Smart Noise Filtering

• Audio codec: G.722, PCMU(G.711µ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC

• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO

• Full-duplex hands-free speakerphone with AEC

• VAD, CNG, AEC, PLC, AJB, AGC

Video Features

• 16 VoIP accounts

• Call hold, call forward, call waiting, call transfer

• One-touch speed dial, hotline, mute, DND

• Group listening, SMS, emergency call

• Redial, call return, auto answer

• 10-way conferencing

• Direct IP call without SIP proxy

• Ring tone selection/import/delete

• Set date time manually or automatically

• Dial plan, XML Browser, Action URL/URI

• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

• Built-in dual band Wi-Fi:

- Network standard: IEEE802.11a/b/g/n

- Transmission rate: Up to 433Mbps (dynamic)

- Frequency range: 2.4GHz/5.0GHz

• Built-in Bluetooth for:

- Bluetooth headset,

- Mobile contacts synchronization

- Bluetooth call

- Simultaneous connection of one headset and one mobile phone

• USB port (2.0 compliant) for:

- Wired/wireless USB headset

- USB call recording through USB flash drive

- Colour-screen expansion modules EXP50 (up to 3)

- Wireless Headset Adapter EHS40

• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:

- Basic functions: Answer / end, call mute

- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control

• Content Sharing (via Yealink VCD)

• Enhanced DSS key

Display and Indicator

• 4.3" 480 x 272-pixel colour display with backlight

• 16 bit depth colour

• LED for call and message waiting indication

• Dual-colour (red or green) illuminated LEDs for line status information

• Wallpaper

• Intuitive user interface with icons and soft keys

• Multilingual user interface

• Caller ID with name and number

• Screensaver

• Power saving

Phone Features

• 16 VoIP accounts

• Call hold, call forward, call waiting, call transfer

• One-touch speed dial, hotline, mute, DND

• Group listening, SMS, emergency call

• Redial, call return, auto answer

• 10-way conferencing

• Direct IP call without SIP proxy

• Ring tone selection/import/delete

• Set date time manually or automatically

• Dial plan, XML Browser, Action URL/URI

• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)

• Built-in dual band Wi-Fi:

- Network standard: IEEE802.11a/b/g/n

- Transmission rate: Up to 433Mbps (dynamic)

- Frequency range: 2.4GHz/5.0GHz

• Built-in Bluetooth for:

- Bluetooth headset,

- Mobile contacts synchronization

- Bluetooth call

- Simultaneous connection of one headset and one mobile phone

• USB port (2.0 compliant) for:

- Wired/wireless USB headset

- USB call recording through USB flash drive

- Color-screen expansion modules EXP50 (up to 3)

- Wireless Headset Adapter EHS40

• USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:

- Basic functions: Answer / end, call mute

- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control

• Content Sharing (via Yealink VCD)

• Enhanced DSS key


Corded-Cordless Phone (via DECT Dongle DD10K)

• Up to 4 DECT cordless handsets

• Up to 4 concurrent calls

• Support Yealink W52H/W53H/W56H/DD Phone/CP930W

• Slave Handset for Master Deskset


IP-PBX Features

• Busy Lamp Field (BLF)

• Bridged Line Appearance (BLA)

• Anonymous call, anonymous call rejection

• Hot-desking, voice mail

• Flexible seating

• Executive and Assistant

• Call park, call pickup

• Centralized call recording, call recording


Directory

• Local phonebook up to 1000 entries

• Black list

• XML/LDAP remote phonebook

• Smart dialling

• Phonebook search/import/export

• Call history: dialled/received/missed/forwarded


Feature keys

• 10 line keys with LED

• 10 line keys can be programmed up to 27 various features(3-page view)

• 7 features keys: message, headset, hold, mute, transfer, redial, hands-free speakerphone

• 4 context-sensitive “soft” keys

• 6 navigation keys

• Volume control keys

• Illuminated mute/headset/hands-free speakerphone key


Interface

• Dual-port Gigabit Ethernet

• Power over Ethernet (IEEE 802.3af), class 3

• 1 x USB port (2.0 compliant)

• 1 x RJ9 (4P4C) handset port

• 1 x RJ9 (4P4C) headset port


Management

• Configuration: browser/phone/auto-provision

• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deployment

• Auto-provision with PnP

• Broadsoft device management

• Zero-sp-touch, TR-069

• Phone lock for personal privacy protection

• Reset to factory, reboot

• Package tracing export, system log


Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)

• Call server redundancy supported

• NAT traversal: STUN mode

• Proxy mode and peer-to-peer SIP link mode

• IP assignment: static/DHCP

• HTTP/HTTPS web server

• Time and date synchronization using SNTP

• UDP/TCP/DNS-SRV(RFC 3263)

• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DS

• SRTP for voice

• Transport Layer Security (TLS 1.3)

• HTTPS certificate manager

• AES encryption for configuration file (AES256)

• Digest authentication using MD5/MD5-sess

• OpenVPN, IEEE802.1X, L2TP VPN

• IPv6, LLDP/CDP/DHCP VLAN, ICE

> WPA2/WPA3

> Secure boot

> GARP (Generic Attribute Registration Protoco


Other Physical Features

• Colour: Classic Grey

• Wall mountable (optional)

• External Yealink AC adapter (optional):AC 100~240V input and DC 5V/2A output

• USB output currency: 5V 500mA

• Power consumption (PSU): 1.7W-4.3W

• Power consumption (PoE): 2.2W-5.5W

• Dimension (W*D*H*T): 233mm*222.6mm*186.1mm*41.7mm

• Operating humidity: 10~95%

• Operating temperature: -10~50°C (+14~122°F)

Package Features

• Package content:

- Yealink SIP-T54W IP phone

- Handset with handset cord

- Ethernet Cable

- Stand

- Quick Start Guide

- Power Adapter (Optional)

• Qty/CTN: 5 PCS

• N.W/CTN: 6.3 kg

• G.W/CTN: 6.8 kg

• Giftbox size: 259 mm*243 mm*103 mm

• Carton Meas: 538 mm*250 mm*265 mm


Frequently Asked Questions


The Yealink SIP-T54W registers up to 16 VoIP accounts, so one desk phone can carry a personal line, a shared team line and the main office number at the same time. There are 10 line keys with LED indicators, and each key can be programmed across three pages to give 27 shortcuts in total for colleagues, queues, speed dials or busy lamp field monitoring, which shows at a glance who is free and who is on a call. Conference calls run with up to 10 people, and the local phonebook holds 1000 contacts with LDAP or XML directory lookup on top. That capacity suits managers, office administrators, receptionists and anyone fielding several calls in a day.

Yes, both are built in and no extra dongle is needed. Dual-band Wi-Fi covers 2.4GHz and 5GHz on IEEE 802.11a/b/g/n at speeds up to 433Mbps, so this Yealink SIP phone works at desks with no data point and in offices where running new cable would mean lifting floors. The 5GHz band helps in busy buildings where the 2.4GHz channels are congested. Bluetooth 4.2 pairs a wireless headset and a mobile phone at the same time, syncs mobile contacts across to the handset and lets you take mobile calls through the desk speaker and handset. Two gigabit Ethernet ports remain available where a wired connection is preferred.

Yes. The phone takes Power over Ethernet to IEEE 802.3af class 3, drawing only 2.2W to 5.5W in normal use, which is modest across a full office of handsets. One cable then carries both the network connection and the power, keeping desks tidy and removing the need for a spare plug socket at every position. The second gigabit port passes the connection through to a PC, so one data point per desk is enough in most offices. The mains adapter is an optional extra, worth ordering when your network switch does not supply PoE.

The T54W is the audio-first model and the T58W is the video model. The T54W has an adjustable 4.3-inch colour display with real physical line keys, which many people prefer for fast dialling, transfers and picking up a ringing colleague without hunting through a screen. The T58W runs Android on a 7-inch touchscreen and includes the CAM50 camera for 720p video calls. Both share 16 accounts, dual-band Wi-Fi, Bluetooth, gigabit Ethernet and PoE, so the deciding question is simply whether the desk needs video. Choose the T54W where clear voice calls, speed of use and a lower price matter most.

Yes. The USB 2.0 port takes a standard USB flash drive for local call recording, so a manager can keep a copy of a call without any extra software. Centralised recording through a compatible hosted PBX is also supported where your provider offers it. The same USB port handles wired and wireless USB headsets, the EHS40 wireless headset adapter, Yealink CP900 and CP700 speakerphones, and up to three EXP50 colour-screen expansion modules for reception desks needing more keys. Check your obligations on notifying callers first, as consent rules apply to call recording in Ireland.

The T54W is a standard SIP VoIP phone supporting SIP v1 and v2, so it registers with most hosted platforms and on-premise systems without extra software or licences. Business features are well covered. Security is handled with TLS 1.3, SRTP for voice, WPA2 and WPA3, and VPN support. Auto provisioning through PnP, Zero-sp-touch, TR-069 or HTTPS lets a provider configure the phone remotely before delivery, so staff plug it in and start working. Pulse Telecom pre-provisions these for its own cloud platform and can confirm compatibility with a system you already run.

Yes. Adding the DD10K DECT dongle turns the T54W into a base for up to four cordless handsets with four concurrent calls, working with the W52H, W53H, W56H, DD Phone and CP930W. That gives cover to staff moving around a shop, workshop, storeroom or salon while keeping one extension number, so callers do not need a second number to reach them. The cordless handsets act as slave handsets to the desk phone, meaning a call can be answered on either. Handsets are ordered separately, which lets you start with one desk phone and expand as the team grows.
