Audio Features
- HD voice: HD handset, HD speaker
- Hearing aid compatible (HAC) handset
- Acoustic Shield, Noise Proof
- Smart Noise Filtering
- Audio codec: G.722, PCMU(G.711µ), PCMA (G.711A), G.729, G.729A, G.729B, G.729AB, G.726, G.723.1, iLBC
- DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
- Full-duplex hands-free speakerphone with AEC
- VAD, CNG, AEC, PLC, AJB, AGC
Video Features
- Video codec: H.264 High Profile, H.264, VP8
- Video quality: 720P (1280x720)-30fps ( ≥ 512 kbps)
- Yealink CAM50 camera:
- - 5 mega-pixel
- - Plug and play
- - Adjustable
- - With privacy shutter and LED indicator
- - Vertical tilt angle adjustable: 47±3°
- Field of view (FOV): 75°±5°
- Self-view (local video preview)
Display and Indicator
- LCD screen:
- - 7” 1024 x 600 capacitive adjustable touch screen
- - Vertical tilt angle adjustable: 48°
- 5-point multi-touch surface
- Screensaver and Wallpaper
- LED for call and message waiting indication
- Intuitive user interface with icons and soft keys
- Multilingual user interface
- Caller ID with name, number ,and photo
Android Bundled Applications
- FileManager/Email/Calendar/Camera/Gallery/ Recorder/Calculator/Browser/Message
- Third-party Android application support
Phone Features
- Yealink's SDK (Software Development Kit)
- 16 SIP accounts
- Call hold, call forward, call waiting, call transfer
- One-touch speed dial, hotline, mute, DND
- Group listening, emergency call
- Redial, call return, auto answer
- Direct IP call without SIP proxy
- Ring tone select/import/delete
- Set the date and time manually or automatically
- Dial plan, action URL/URI
- RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
- 10-party audio conferencing
- Data import/export via Bluetooth, email, etc.
- DoorPhone features: Preview, One-button Open, Monitoring
- USB/Bluetooth connectivity to Yealink CP900/CP700 speakerphone, USB connectivity to Yealink UH36 headset:
- Basic functions: Answer/end, call mute
- Enhanced function: audio optimization, redial, call hold, volume synchronization, multiple calls control
- Analog PSTN calls via CPN10
- Wireless Access Point (AP mode)
Corded-Cordless Phone (via DECT Dongle DD10K)
- Up to 4 DECT cordless handsets
- Up to 4 concurrent calls
- Support Yealink W73H/W53H/W56H/W59R/DDPhone/CP930W
- Slave Handset for Master Deskset
IP-PBX Features
- Busy Lamp Field (BLF), Bridged Line Appearance(BLA)
- Anonymous call, anonymous call rejection
- Remote office, hot desking, intercom, paging
- Call completion
- Message Waiting Indicator (MWI)
- Voice mail, call park, call pickup
- Music on hold
- Call recording
Directory
- Local phonebook up to 1000 entries
- Block list
- XML/LDAP remote phonebook
- Google contacts
- Smart dialing
- Phonebook search/import/export
- Call history: dialed/received/missed/forwarded
Feature keys
- 27 one-touch DSS keys
- 7 feature keys: hold, transfer, message, headset, mute, redial, speakerphone
- Volume control keys
- Illuminated mute/headset/hands-free speakerphone key
Interface
- Dual-port Gigabit Ethernet
- Power over Ethernet (IEEE 802.3af), class 3
- Built-in dual-band Wi-Fi:
- - Network standard: IEEE802.11a/b/g/n
- - Frequency range: 2.4GHz/5.0GHz
- Built-in Bluetooth 4.2 for
- - Bluetooth Handset BTH58
- - Bluetooth headsets
- - Pairing mobile devices
- - Simultaneous connection of one headset and one mobile phone
- 1 x USB 2.0 port (on the top of the phone) for:
- - Yealink CAM50 camera
- 1 x USB 2.0 port (on the rear of the phone) for:
- - USB flash drive
- - USB headset
- - Color-screen expansion modules
- - Wireless Headset Adapter EHS40
- 1 x Security lock port
- 1 x RJ9 (4P4C) handset port
- 1 x RJ9 (4P4C) headset port
- Supports up to 3 color-screen expansion modules
Management
- Configuration: browser/phone/auto provision
- Auto provision via FTP/TFTP/HTTP/HTTPS
- Auto provision with PnP, Zero-sp-touch, TR-069
- Phone lock for personal privacy protection
- Reset to factory, reboot
- Package tracing export, system log
- Only the administrator can install/uninstall apps via autop
- Setup Assistant wizard
- Supports Yealink Device Management Platform(YMDP/YMCS)
- Supports Unify Square Device Management Platform
Network and Security
- IPv4/IPv6
- SIP v1 (RFC2543), v2 (RFC3261)
- Call server redundancy supported
- NAT traversal: STUN mode
- Proxy mode and peer-to-peer SIP link mode
- IP assignment: static/DHCP
- HTTP/HTTPS web server
- Time and date synchronization using SNTP
- UDP/TCP/DNS-SRV (RFC 3263)
- QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
- SRTP
- Transport Layer Security (TLS 1.3)
- HTTPS certificate manager
- AES encryption for configuration file (AES256)
- Adb encryption authenticated
- Digest authentication using MD5/MD5-sess
- OpenVPN, IEEE802.1X, L2TP VPN
- WPA2/WPA3
- Secure boot
- GARP (Generic Attribute Registration Protocol)
Other Physical Features
- Color: Classic Grey
- Wall mountable (optional)
- External Yealink AC adapter (optional): AC 100~240V input and DC 5V/2A output
- USB output currency: 5V 500mA
- Power consumption (PSU): 2.5W~10W
- Power consumption (PoE): 3.3W~9W
- Dimension (W*D*H*T): 259.4mm*220mm*239mm*42.6mm
- Operating humidity: 5% to 90%, noncondensing
- Operating temperature: -10 to +45°C (+14 to 113°F)
Package Features
- Package content:

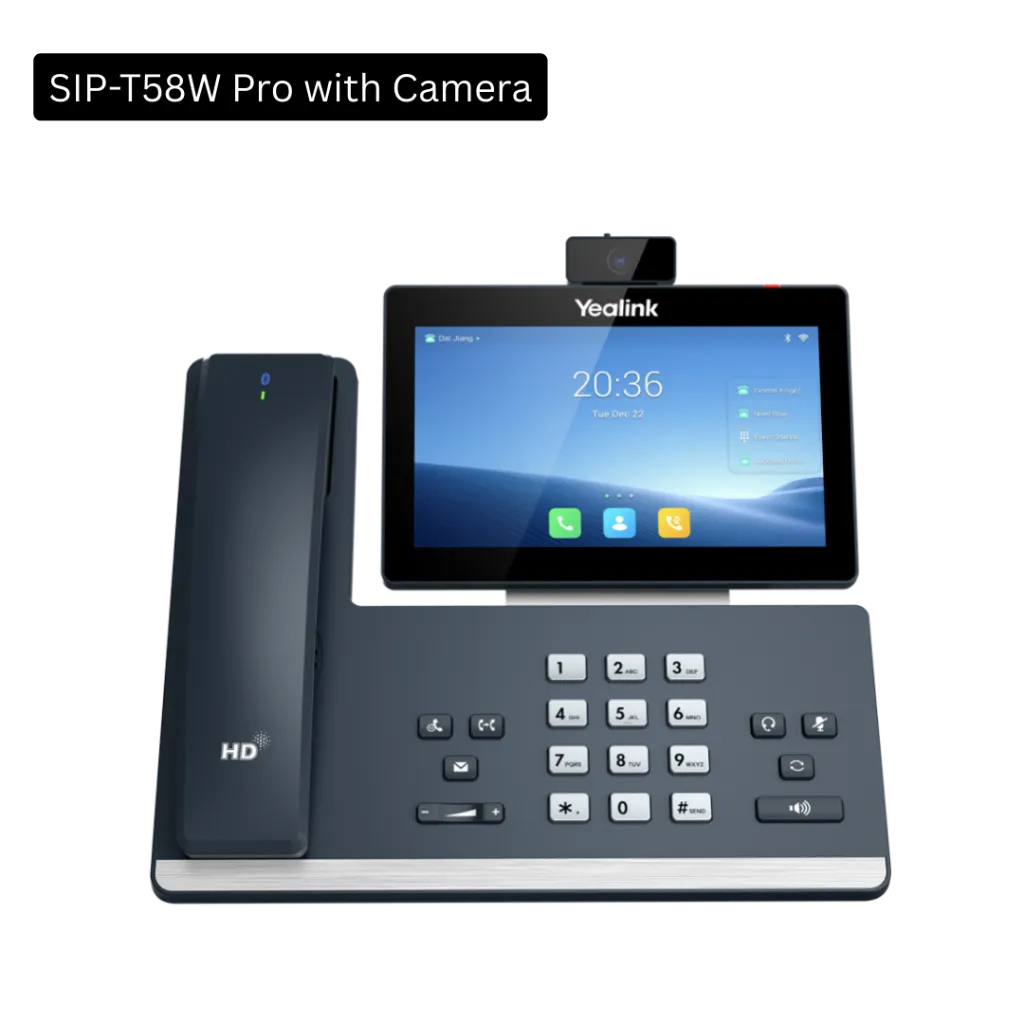

- - Yealink SIP-T58W Pro with camera IP phone
- - Handset:
- Wired handset with handset cord (Optional)
- BTH58 Bluetooth handset
- - Ethernet Cable
- - Stand
- - Yealink CAM50 camera
- - Quick Start Guide
- - Power Adapter (Optional)
- Qty/CTN: 5 PCS
- N.W/CTN: 8.880 kg
- G.W/CTN: 9.558 kg
- Giftbox size: 324 mm*293 mm*128 mm
- Carton Meas: 680 mm*303 mm*342 mm
